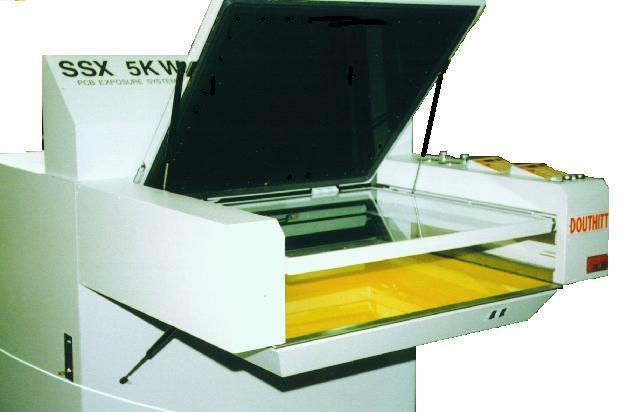

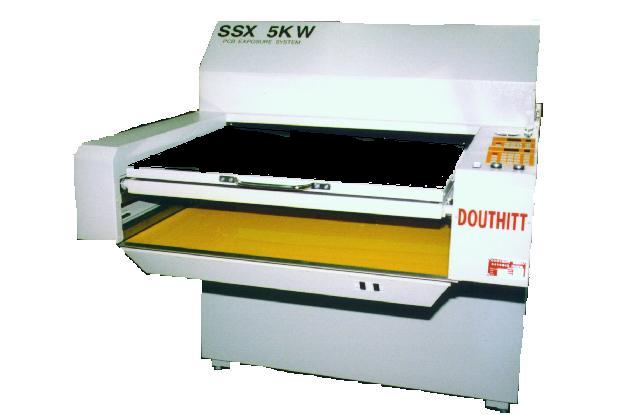

The SSX is a self contained, dual drawer, single sided production exposure unit for image resists for printed circuits and displays, using dry film or liquid photoimageables. The SSX includes dual additive, air cooled, ozone free quartz lamps which concentrate all of the effective energy into the precise spectral range required for sharp high resolution imaging.
|
|
|
Single-sided exposure materials up to 25” x 30”. (63.5cm x 76.2cm).
Built for high production applications and continuous duty.
Two Douthitt MAGIC 83 Integrators allow each frame to have up to 10 memories of exposures programmed.
Each frame is programmable independent of the other.
Vacuum frames are power driven on Heavy Duty gear track with precision steel bearings on stainless steel track.
Electronically controlled accelerating and decelerating motor for smooth operation
Low operating and maintenance cost.
Small footprint
Complete Air conditioning system provides stabilized temperature during loading and exposure.
Designed to connect to a heat exchanger via dual heat exhaust ducts.
Convenient access to exposure trays for cleaning.
Outstanding factory customer service support.
Available in 5kW or 8kW.
Custom sizes available.
Dimensions: 53”W x 60”H x 68”D. (135cm x 153cm x 173cm).
Cabinet: Welded heavy gauge steel construction. Two full length hinge doors for easy access.
Lamps: Metal halide. Air cooled ozone-free quartz.
Uniformity: +/- 10% C.A.D. reflectors.
Cooling: 8000 BTU/hr. air conditioning system is integrated into the cabinet, with condenser mounted in back. Turbo fans direct cool air onto drawers and lamps during exposure and loading. Available with a heat exchanger in lieu of air conditioner.
Contact System: Exclusive vacuum system that offers the fastest contact. No manual latching, simply close the frame.
Electrical: 5kW — 208-240 volt, 50/60 hz, single phase, 40 amps. Single phase, 35 amps. 8kW — 208-240 volt, 50/60 hz, 55 amps, single phase.
Controls: State of the art Electronic light integrator with LED display and precision accuracy. All controls are conveniently located for easy use.
