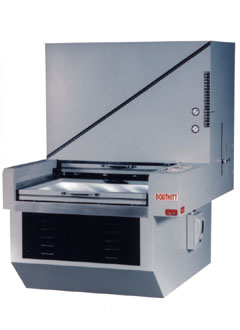

• Load One Frame While Other Frame Is Exposing
• Option “X” On Both Frames Guarantees Fastest Contact And Best Registration
• Counterbalanced Adjustable Lamp To Optimize Exposure Time And Coverage

1. Two complete vacuum frames with the OPTION “X” cavity vacuum system, an electronically controlled inverse air evacuation system that starts the vacuum in the center of the frame and moves it outward to the edges eliminating the trapping of air. OPTION “X” gives you the fastest, most consistent overall contact and the best registration. For more details on OPTION “X” .
2. Complete Olite AL 53 Tri-Level 5000 Watt Printing Lamp Assembly. For more information on Olite and Violux Printing Lamps.
3. Two Douthitt Heavy Duty Magic 83 Combination Light Integrators and Digital Timers. Each integrator comes complete with PA 86 photocell. For more Details.
4. Printing Lamp can be raised and lowered by means of counterbalanced weight concealed inside unit, guaranteeing optimum coverage.
5. Spring Loaded Back is furnished on both blanket frames allowing any height register pins or contact boards of any thickness.
6. Vacuum Frames are power driven on heavy duty gear track with precision bearings.
7. Electronically controlled accelerating and decelerating motor for smooth operation.
8. Conveniently located control switches and vacuum gauges.
9. Large access doors for easy cleaning, installation and maintenance.
10. All Heavy gauge steel welded construction.
11. Two Heavy Duty pump and motors.
12. Two Heavy Duty smooth universal blankets.
13. Pumps and Power Supply conveniently located on shelf inside cabinet.
14. Effortless raising and lowering of the glass frames.

(A) Two Douthitt Heavy Duty Model 26 Silent Air Pump instead of standard pumps and motors (these pumps require compressed air). For more info.
(B) Any Douthitt or Olix Combination Light Integrators and Digital Timers can be mounted in lieu of standard integrators Olix 975SC, for more info.
(C) Olite AL83 8000 Watt Tri-Level Printing Lamp Assembly with exhaust system instead of Standard Lamp.
(D) Filters for Olite Lamps Motorized Dual Rolling Filter Holder with Kokomo and Clearing Filters.
(E) Violux VT6 6000 Watt Tri-Level Printing Lamp Assembly instead of Standard Lamp.
(F) Violux VT8 8000 Watt Tri-Level Printing Lamp Assembly instead of Standard Lamp.
(G) Filters for Violux Lamps Motorized Dual Rolling Filter holder with Kokomo and Clearing Filters.
(H) Designed to be used with Central Vacuum System instead of standard pumps and motors N/C
(I) 5-Drawer Ball Bearing Cabinet mounted inside frame 29 x 40 (Drawer I.D. 25 x 37), 35 x 45 and 40 x 50 (Drawer I.D. 32 x 43), 44 x 54 through 48 x 60 (Drawer I.D. 38 x 50). Larger cabinets available.
(J) Motorized raising and lowering of Printing Lamp Assembly instead of manual lifting.
(K) Spare bulb for printing lamp see Lamps.
