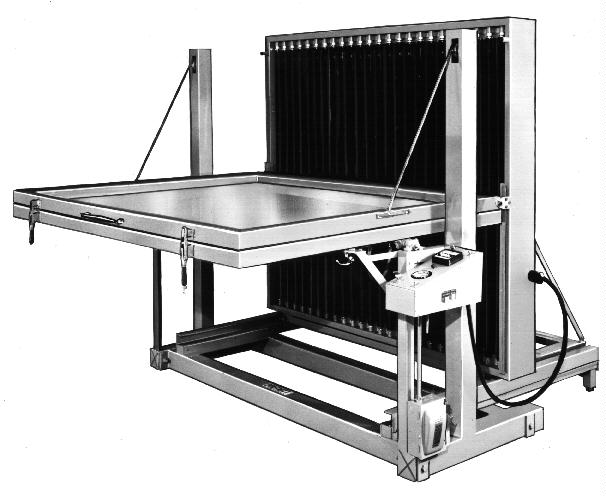

Douthitt OPTION "X" Vacuum Frames

DL Dylux

Price Includes:
  1. This unit contains a bank of high output Blacklights recommended by DuPont for fast, clean dry proofs using DuPont Dylux® material. Eliminates the time and expense of wet proofing systems. Simply load frame, close glass under vacuum and then raise counterbalanced glass and blanket frame. The Light Bank automatically comes forward and turns on the bank of proofing bulbs. (Patented) Simultaneous instant ignition of all lamps made possible by special engineered ballasting system.
  2. Heavy Duty Automatic Reset Timer.
  3. Spring Loaded Back is furnished on the blanket frame allowing any height register pins on top or thru register boards.
  4. Heavy Duty Vacuum Pump and Motor.
  5. Heavy Duty Universal Blanket.
  6. Finger Tip Control of glass frame by counterbalanced weights.
  7. Optic clear A-1 Select Glass.
  8. All heavy gauge steel welded construction.
  9. Vacuum Gauge, Timer and necessary operational switches housed on convenient instrument panel.
  10. Floor type adjustable leveling screws.
  11. DeStaCo clamps lock frames together.


(A) Douthitt Heavy Duty Model 26 Silent Air Pump instead of standard pump and motor (this pump requires compressed air). For Details.
(B) Designed to be used with Central Vacuum System instead of standard pump and motor.
