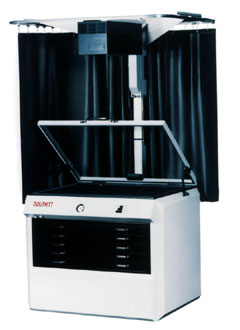

Douthitt OPTION "X" Vacuum Frames
Model DCOPXD Designer Series
- Designed to look attractive in non-traditional environment
- Best Performance on:
- PLATES
- PROOFS
- FILMS
- STOCHASTIC
- Option "X" guarantees fastest contact and best registration
Price Includes
- Douthitt’s OPTION “X” Vacuum system, and electronically controlled inverse air evacuation system that starts the vacuum in the center of the frame and moves it outward to the edges eliminating the trapping of air. OPTION “X” gives you the fastest, most consistent overall contact and the best registration. For more details on OPTION “X”.
- Complete Olite AL53 Tri-Level 5000 Watt Printing Lamp Assembly. For more details on the Olite and Violux Printing Lamps.
- Douthitt Heavy Duty Model Magic 83 Combination Light Integrator and Digital Timer with 10 channel memory. Integrator comes complete with vacuum time delay, PA 86 dual UV photocell, and ability to control all 3 intensities of printing lamps. For more Details.
- 5-Drawer Ball Bearing Cabinet mounted inside frame.
- Opaque curtain assembly to eliminate light spillage. Fully fire retardant and OSHA approved material.
- Printing Lamp can be raised and lowered by means of counterbalanced weight concealed in vertical post.
- Spring Loaded Back is furnished on the blanket frame allowing any height register pins or contact boards of any thickness.
- Finger Tip Control of glass frame is achieved by exclusive patented spring and fulcrum system (clamps automatically).
- Heavy Duty Vacuum Pump and Motor.
- Heavy Duty Universal Blanket.
- All heavy gauge steel welded construction.
- Floor type adjustable leveling screws.
