Console Overhead Platemaker

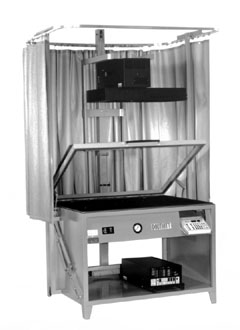

Console Platemaker
Console Overhead Platemaker

Price Includes:

  1. Douthitt’s OPTION “X” Vacuum system, an electronically controlled inverse air evacuation system that starts the vacuum in the center of the frame and moves it outward to the edges eliminating the trapping of air. OPTION “X” gives you the fastest, most consistent overall contact and the best registration. For more details on OPTION “X”.
  2. Complete Olite AL 53 Tri-Level 5000 Watt Printing Lamp Assembly. For more details on the Olite and Violux Printing Lamps.
  3. Douthitt Heavy Duty Model Magic 83 Combination Light Integrator and Digital Timer with 10 channel memory. Integrator comes complete with vacuum time delay, PA 86 dual UV photocell, and ability to control all 3 intensities of printing lamps. For more Details.
  4. Printing Lamp can be raised and lowered by means of counterbalanced weight concealed in vertical post.
  5. Spring Loaded Back is furnished on the blanket frame allowing any height register pins or contact boards of any thickness.
  6. Printing Lamp has travel up to 60" for daylight materials.
  7. Easy to see “Read Out” in one-inch multiples gives accurate positioning of distance between lamp and frame.
  8. Heavy Duty Vacuum Pump and Motor.
  9. Heavy Duty Universal Blanket.
  10. Finger Tip Control of glass frame is achieved by exclusive, patented spring and fulcrum system (clamps automatically).
  11. Optic clear A-1 Select Glass.
  12. Power Supply and Pump and Motor are housed on shelf inside Frame.
  13. All heavy gauge steel welded construction.
  14. Vacuum Gauge, Integrator and necessary operational switches housed on convenient instrument panel.
  15. Floor type adjustable leveling screws.
Optional Accessories

(A) Douthitt Heavy Duty Model 26 Silent Air Pump instead of standard pump and motor (this pump requires compressed air) for Details
(B) Any Douthitt or Olix Combination Light Integrator and Digital Timer can be mounted in lieu of Standard Integrator Olix 975SC.
(C) Olite AL 83 - 8000 Watt Tri-Level Printing Lamp Assembly complete with exhaust system instead of Standard Lamp.
(D) Filters for Olite Lamps Dual Rolling Filter Holder with Kokomo and Clearing Filter, Motorized Dual Rolling Filter Holder with Kokomo and Clearing Filter (special integrator is needed for automation)
(E) Violux VT6 - 6000 Watt Tri-Level Printing Lamp Assembly instead of Standard Lamp
(F) Violux VT8 - 8000 Watt Tri-Level Printing Lamp Assembly instead of Standard Lamp
(G) Filters for Violux Lamps Double Rail extended Mounting Brackets with Kokomo and Clearing Filters, Motorized Dual Rolling Filter Holder with Kokomo and Clearing Filter, (special integrator is needed for automation)
(H) Opaque Curtain Assembly – Eliminate Light Spillage, Fully Fire Retardant and OSHA approved material.
(I) Designed to be used with Central Vacuum System instead of Standard Pump and Motor.
(J) 5-Drawer Ball Bearing Cabinet mounted inside frame 30 x 40 (Drawer I.D. 25 x 37) 35 x 45 and 40 x 50 (Drawer I.D. 32 x 43) 44 x 54 through 48 x 60 (Drawer I.D. 38 x 50) Larger cabinets available.
(K) Your choice of color (If not specified the unit will be finished in an easy to clean long wearing gray epoxy enamel)
(L) Motorized raising and lowering of Printing Lamp Assembly instead of Standard Manual Counterbalanced Lifting.
(M) Convenient Yellow Inspection Light mounted on Lamp Carriage Assembly.
(N) Spare bulb for printing lamp see LAMPS.
