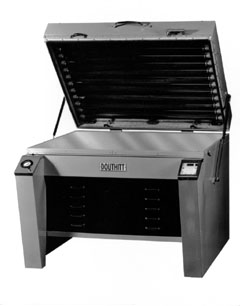

Douthitt Vacuum Frames

Double Sided Dylux Proofer

Price Includes
  1. Two banks of high output black lights recommended by DuPont for fast, clean dry proofs using DuPont Dylux® material.
  2. Loads glass down with clear mylar blanket.
  3. Simultaneous instant ignition of all lamps made possible by special engineered ballasting system.
  4. Heavy Duty Automatic Reset Timer.
  5. Glass and blanket frames can be raised together to clean under side of glass or for installing bulbs.
  6. Heavy Duty Vacuum Pump and Motor.
  7. Vacuum Relief Bleeder Valve mounted on instrument panel.
  8. Optic clear A-1 Select Glass.
  9. All heavy gauge steel welded construction.
  10. Vacuum Gauge, Timer, Bleeder Valve and necessary operational switches housed on convenient instrument panel.
  11. Floor type adjustable leveling screws.
  12. Unit finished in easy to clean, long wearing Epoxy Enamel.

Optional Accessories

(A) Douthitt Heavy Duty Model 26 Silent Air Pump instead of standard pump and motor (this pump requires compressed air) For Details.
(B) 5-Drawer Ball Bearing Cabinet mounted inside frame 35 x 45, Drawer I.D. 25 x 37, 42 x 52, Drawer I.D. 32 x 43, 48 x 60, Drawer I.D. 38 x 50.
(C) 10 Memory Timer complete with vacuum time delay instead of standard timer. *The 60 x 80 includes all 12 features under "price includes", in a different design.
